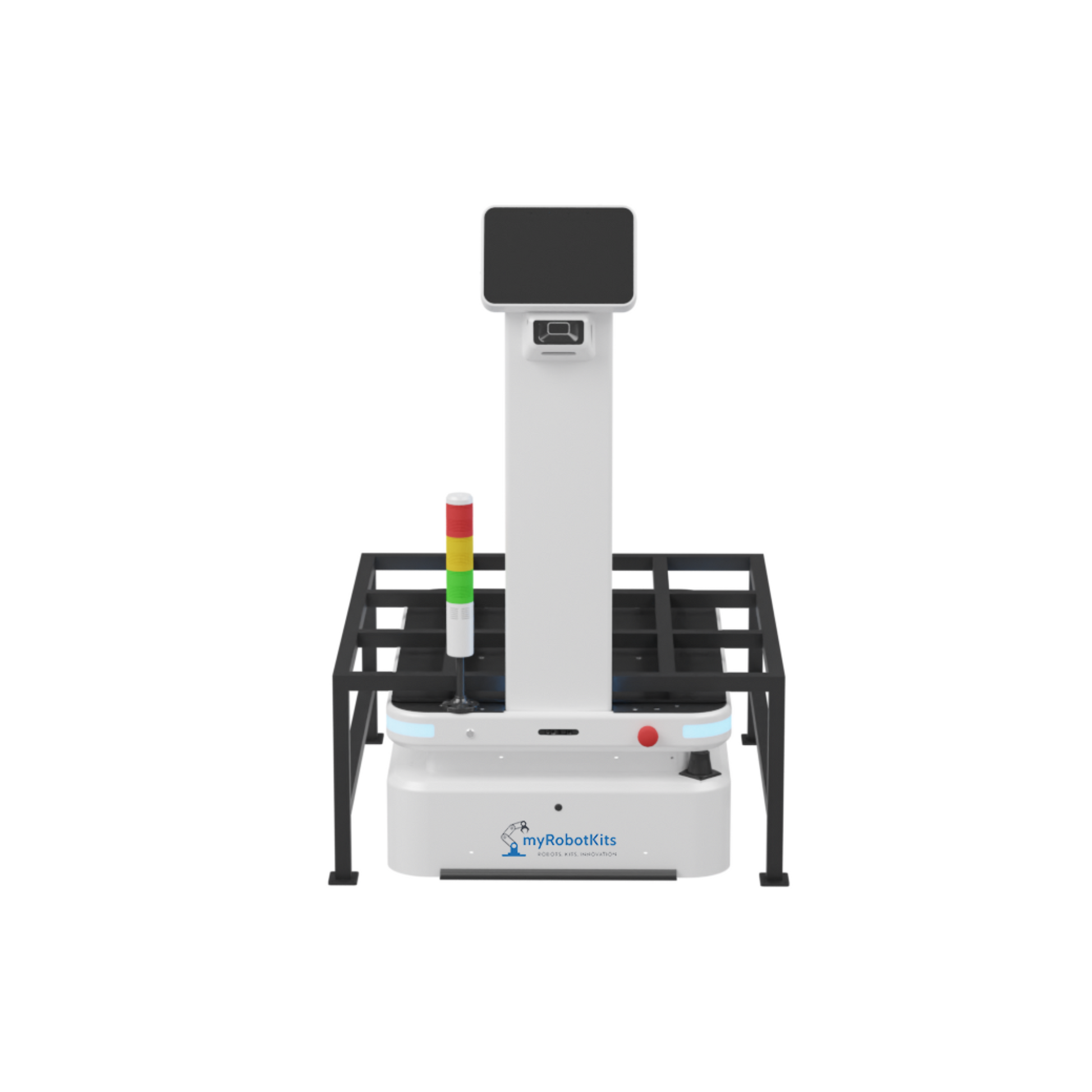

myRobotKits L-600 AMR (Autonomous Mobile Robot) is a robust and versatile robot designed for efficient material handling. It measures 1314 mm in length, 950 mm in width, and 650 mm in height, weighing 180 KG with a durable ABS and metal construction.
Key features include:
Lifting Capability: Can lift up to 600 KG with a height of 50 mm at a speed of 5 m/s.
IP Level: Rated IP43 for the robot and IP66 for the battery, ensuring protection against dust and water.
Display: 10.1-inch screen with a resolution of 1280 x 800.
Operating System: Runs on Android 11 and Linux (Ubuntu).
Sensors: Equipped with LiDAR, depth camera, and RGB camera for navigation and object detection.
Battery: 22500 mAh, providing up to 8 hours of operation with a quick 1.1-hour charging time.
The AMR's advanced features make it an ideal choice for logistics and service tasks, offering reliable and efficient performance.
Specification
Details
Dimensions
1314 * 950 * 650 mm
Weight
180 KG with durable ABS and sheet metal construction
Lifting Capability
600 KG, Lifting Height 50 mm, Speed 5 m/s
IP Level
Robot IP43, battery pack IP66
Display
10.1-inch screen, resolution 1280 * 800
Operation System
Android 11 + Linux (Ubuntu)
Sensor
LiDAR + Depth Camera + RGB Camera
Battery
22500 mAh, 8 hours deployment, charging piles can provide 7 * 24h service, Charging Time 1.1 hours
